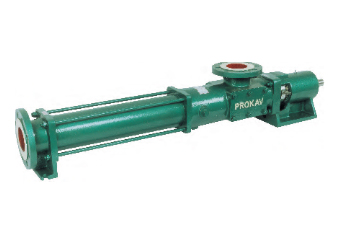

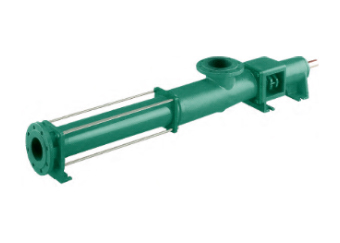

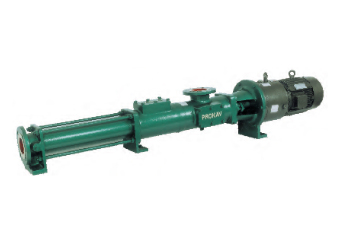

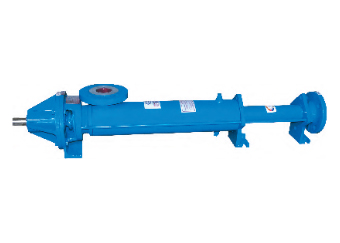

KX-A SERIES INDUSTRIAL AND CHEMICAL SCREW PUMPS

  • Capacity: 275 M/HR. Pressure-48 Bar, Temperature-200°C. Viscosity -1,00,000 CST
  • Field of application: Ceramic Slurry and other Abrasive and Corrosive slurries, Massecuite, Effluents, Mineral Oils, Maize Starch Slurry, Viscose, Paints, Vegetable Oil & Sludge etc...
  • Features: KX-CO Pumps are of Cast iron construction with various metallurgy of rotating parts like Alloy Steel, Tool steel, 55 304 and 55 316 while KX-CF pumps are of 55304 and 55 316 material of construction. Other various options of FRP/Ebonite lined housing with rotating parts in Super Alloys like Aloy 20, Hastelloy C. Hastelloy B.. Titanium are available for fighly corrosive applications. Shaft sealing ensured by soft corrosive appe gland packing/ mechanical seal. Torsion free metal bonded stator and double sealed universal joints as Pin & Bush Joints or Special Designs like Gear Joints or Cardon Joints as per customer requirements for longer service

SPECIFICATIONS

SIZE 21 31 38 45 53 63 76 90 105 125 148 180
CAPACITY
in Cu.M/Hr.		 3.0 8.5 16 22 30 40 60 75 120 200 240 275
PRESSURE
in BAR		 30 36 48 48 48 48 24 24 24 18 18 18
SPEED
(RPM)		 1400 1400 1400 1400 1000 1000 750 750 750 600 400 400


KX-B SERIES INDUSTRIAL AND CHEMICAL SCREW PUMPS

  • Capacity: 550 M/HR, Pressure-6 Bar. Temperature-200°C. Viscosity-1,00,000 CST
  • Field of application: Ceramic Slurry and other Abrasive and Conmosive slurries, Massecuite. Effluents, Mineral Oils, Maize Starch Slurry, Viscose, Paints, Vegetable Oil & Sludge etc..
  • Features: KX-B-CD Pumps are of Cast construction with various metallurgy of rotating parts like Alloy Steel, Tool steel, SS 304 and 55 316 while KX-B-CF pumps are of 55304 and 55 316 material of construction. Other various options of FRP/Ebonite lined housing with rotating parts in Super Alloys like Alloy 20, Hastelloy C. Hastelloy B, Titanium are available for highly corrosive application. Shaft sealing ensured by soft gland packing mechanical seal. Torsion free metal bonded stator and double sealed universal joints as Pin & Bush Joints or Special Designs like Gear joints or Cardon joints as per customer requirements for longar service life and improved efficiency results in trouble free performance of the pumps.

SPECIFICATIONS

SIZE 21 31 38 45 53 63 76 90 105 125 148 180
CAPACITY
in Cu.M/Hr.		 5 13 30 42 60 70 120 160 240 300 480 550
PRESSURE
in BAR		 6 6 6 6 6 6 6 6 6 6 6 6
SPEED
(RPM)		 1400 1400 1200 1200 1000 1000 750 750 750 600 400 400


KX-PK SERIES INDUSTRIAL AND CHEMICAL SCREW PUMPS

  • Capacity: 100 M/HR. Pressure-24 Bar. Temperature-200°C. Viscosity-1,00,000 CST
  • Field of application: All types of Abrasive, Corrosive, high consistency, fibrous, viscous and non viscous slurries/ Sludge with solid suspensions which are generally considered un-pumpable,
  • Features: PK Series 6f Pumps are designed with special Geometries in 1/2 as well as 2/3 profiles: While Cast Iron and SS 316 material of construction are offered, Special materials of construction are available for highly corrosive fluids. Shaft sealing ensured by soft Gland Packing/mechanical seal. Torsion free metal bonded stator and double sstled universal joints for longer service life and higher efficiency

SPECIFICATIONS

SIZE 1.0 0.4 2.6 6 13 25 40 45 60 62 90 100 120
CAPACITY
in Cu.M/Hr.		 0.2 0.35 1.8 4.0 9.0 20 35 40 50 60 80 90 100
PRESSURE
in BAR		 24 24 24 24 24 24 24 24 24 24 24 24 24
SPEED
(RPM)		 1400 1400 1400 1400 1400 1000 1000 750 750 750 600 400 400

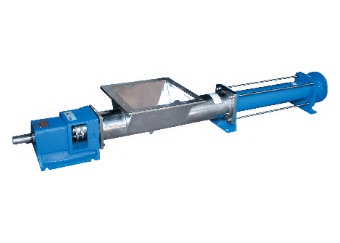

KX W SERIES WIDE THROAT CHEMICAL AND HYGIENE SCREW PUMPS

  • Capacity: 275M/HR. Pressure 36 Bar. Temperature-200°C. Viscosity-1,00,000,00 CST
  • Field of application: Cake Mix, Grease, Water Asbestos Slurry, Explosive slurry, High Consistency Paper Pulp, Grout mix, Printers ink Paste, Pulp Concentrates, Jam, Chawanaprash, Yoghurt, Creams and other media termed as Non Newtonian Fluids
  • Features: Hopper type suction inlet allowing gravity flow of Plastico-Viscous media on to Augur cum Coupling Rod pushing viscous substances into pumping cavity. Standard Pumps employ Mild Steel Hopper Pump Casing with alloy steel rotating parts. For corrosive or hygienic duty, all contact parts will be in 55 material. Shaft sealing by soft Gland Packing/Mechanical Seal. Delivery connection in BS, ISO, ASA, ANSI flanged ends and for hygiene applications, IDF, SMS/ Triclover or equivalent are used. Bridge Breaker Paddle assembly is available as option for products forming bridge while handling high consistency media and referred as KWBB Series of Pumps.

SPECIFICATIONS

SIZE 21 31 38 45 53 63 76 90 105 125 148 180
CAPACITY
in Cu.M/Hr.		 3.0 8.5 16 22 30 40 60 75 120 200 240 275
PRESSURE
in BAR		 30 36 48 48 48 48 24 24 24 18 18 18
SPEED
(RPM)		 1400 1400 1400 1400 1000 1000 750 750 750 600 400 400

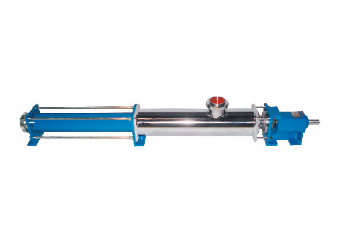

KX-F SERIES QUICK CLEAN HYGIENE SCREW PUMPS

  • Capacity: 120M/HR, Pressure 48 Bar, Temperature -200°C, Viscosity-10,00,000 CST
  • Field of application: Fruit Pulp, Fruit juice, Honey, Condensed milk, Butter Oil, Glucose, Cream, Curd, Yeast, Icecream, Pharmaceutical Formulation. Syrup.. Malt Extract etc...
  • Features: Hygienic design pump with all metal parts in contact with liquid in smooth 55 and stator of non-contamination rubber, Seamless body eliminating product retaining pockets. Shaft sealing by food grade soft Gland Packing mechanical seal. IDF/SMS/TRICLOVER/ equivalent end connections.

SPECIFICATIONS

SIZE 21 31 38 45 53 63 76 90 105
CAPACITY
in Cu.M/Hr.		 3.0 8.5 16 22 30 40 60 75 120
PRESSURE
in BAR		 30 36 48 48 48 48 24 24 24
SPEED
(RPM)		 1400 1400 1400 1400 1000 1000 750 750 750


KXCC SERIES CLOSE COUPLED COMPACT PUMPS

  • Capacity: 75M/HR. Pressure-12 Bar, Temperature 120°C Viscosity-1,00,000 CST
  • Field of application: Acids and Alkaline slurry, Alum, Bentonite slurry, Casein Slurry, Ceramic Slurry, Coating Mix, Detergent slurry. Dewatered sludge. Electroplating solution, Emulsions, Ferrite slurry, Flocculent, Glue, Grout Mix, Gum Sludge, Industrial wastes, Latex. Lube Oil, Magma, Massecuite, Molasses, Oil sludge, Paint, Paperpulp, Petroleum jelly, Polyelectrolytes, Printing ink. Resins. Soap stock. Sodium Silicate, Spent wash, Varnish, Vegetable oil, Viscose, Water to Thickened Sludge, Yeast etc.,
  • Features: Compact Configuration of Screw Pumps in which the Pumping Parts are coupled directly to the drive thereby eliminating the Bearing Housing. Suitable for restricted spaces of operation or Mobile Pump Sets apart from low maintenance and cost effectiveness ensuring long service life. Various Material of Construction are offered to suit varied applications in Cl, CS, SS304, SS316 etc., while Stators will be of Natural. Nitrile, EPDM, Neoprene. Hypalon, Viton, Silicon. Butyl, Hi-Nitoile, Buna Poly Butadiene.etc


KB SERIES VERTICAL/DRUM/BARREL SCREW PUMPS

  • Capacity: IOM/HR, Pressure-12 Bar, Temperature-120°C, Viscosity-10,00,000 CST
  • Field of application: Acids, Beer, Diesel Oil, Lubricating Oil, Furnace Oil Drug formulations, Varmish, Chemical Solutions, Grease, Cream, Putty, Ink paste, Glucose, Malt Extract, etc.,
  • Features: Portable design vertical screw pumps for emptying barrels. Driven by vertical flange mounted Geared or Flanged Motors. Available in MS or SS construction with rotating parts suit duty concitions. Shaft sealing by soft Gland Packing Mechanical seal.
